Boring Systems meeting emands of machining parts for energy sector

Wohlhaupter India Pvt. Ltd. highlights boring systems to machine high-quality energy components -quicker and quieter.

Wohlhaupter India Pvt. Ltd. provides engineering, technical support, and onsite application services within India for Wohlhaupter GmbH and Allied Machine and Engineering Corp., leading manufacturers of hole making and finishing tooling systems. Wohlhaupter India Pvt. Ltd. offers more precision and peace on the shop floor with Wohlhaupter modular boring systems for manufacturers of field components for the energy industry.

Machining parts for such a challenging sector can include variances in workpiece materials, long cross holes and boring through difficult applications with precision. To reduce chatter and improve hole quality in tough boring applications, Wohlhaupter India recommends their boring systems with NOVITECH vibration dampening modules.

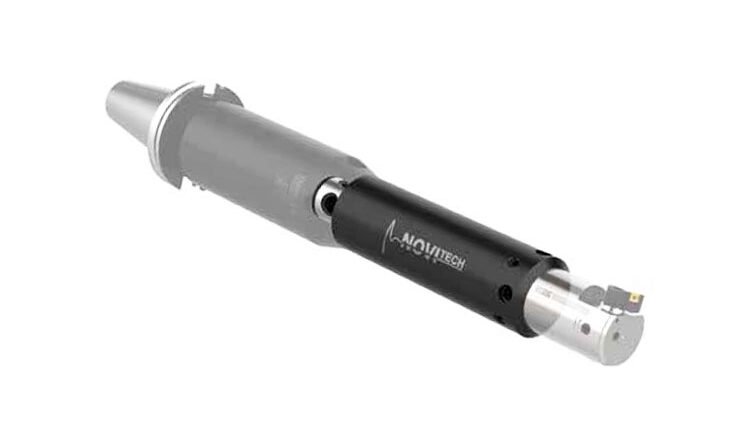

The Wohlhaupter 320 boring head with NOVITECH provides productivity, surface quality, and process reliability in applications that may involve significant material variances or long overhangs greater than 6:1. Mounted inside the patent pending NOVITECH system, the viscoelastically mounted damper modules reduce vibrations when boring diameters ranging from 1.97”– 8.07” (50mm – 205mm), up to 10xD. By combining Wohlhaupter boring tools with the NOVITECH (“no vibration technology”) module, the inserts and the machine center’s spindle achieve longer life. The NOVITECH modules are compatible with any machine spindle and feature Wohlhaupter’s MVS connection too, making it simple to use with existing Wohlhaupter components.

Recently, a Wohlhaupter NOVITECH boring system provided significant productivity improvements, surface quality, and time savings for A to Z Machine Company, Inc. This company specializes in a wide variety of custom parts including complex components and assemblies for the oil/gas industry and they’d been contracted to manufacture high pressure, multifunction pumps. Each cast-iron part was to be bored with three holes, each with a 12” depth and a 22” reach. Previous tooling had been running at a slow 0.47 IPM resulting in a lengthy cycle time of 84 minutes per part for this feature, so they reached out a field engineer, Mark Fowler, based in their area.

Together Fowler and A to Z’s lead manufacturing engineer, Marc Manteufel worked to find the best tools and techniques to reduce both Manteufel worked to find the best tools and techniques to reduce both vibrations and cycle time while maintaining the required finish. Fowler and Manteufel selected the Wohlhaupter 320 boring head with NOVITECH vibration damper for the job. With the right tooling and expert teamwork, the cycle time for this feature was reduced by 74 minutes while still achieving the required finish.
