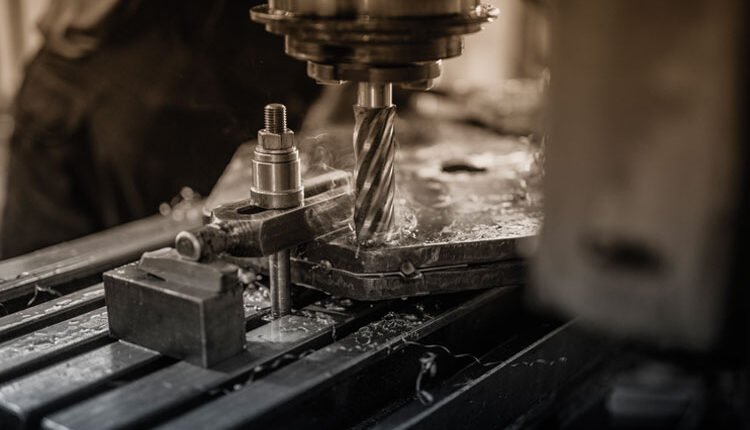

Endmills For Cutting Hard Metals – Setting New Benchmarks In Machining Excellence

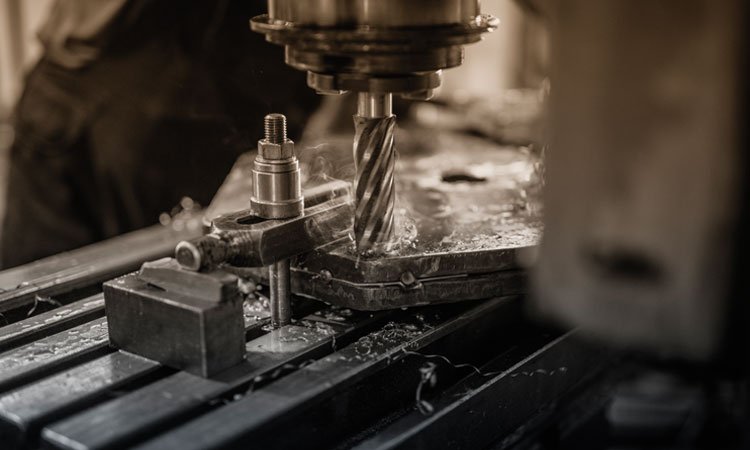

In the world of precision machining, endmills play a pivotal role in shaping and cutting materials with accuracy and efficiency. However, when it comes to hard metals like titanium, tool steel, and Inconel, the machining process becomes significantly more complex. These materials are known for their exceptional strength, heat resistance, and wear resistance, making them invaluable in industries such as aerospace, automotive, and defense. Yet, their very properties pose unique challenges, including rapid tool wear, excessive heat generation, and increased cutting forces.

The evolution of endmills has provided solutions to these challenges, offering tools specifically designed to meet the demands of machining hard metals. This article explores the features, types, and innovations in endmills that make them suitable for such arduous applications.

Understanding the Nature of Hard Metals

Hard metals are prized for their ability to perform under extreme conditions, whether it’s in the heat of a jet engine or the stress of high-speed automotive applications. Titanium, for instance, is celebrated for its high strength-to-weight ratio and corrosion resistance, while Inconel thrives in high-temperature environments. Similarly, hardened tool steel is commonly used for molds and dies due to its durability and wear resistance.

However, these properties also make them difficult to machine. Their hardness and toughness require tools that can endure high stress without deforming. Moreover, these metals have low thermal conductivity, which causes heat to accumulate at the cutting edge, accelerating tool wear. Machining such materials calls for advanced endmills engineered with specialized features.

Features That Define Endmills for Hard Metals

Endmills for hard metals are not ordinary tools. They are designed with specific characteristics that allow them to handle the stresses of machining while maintaining precision and efficiency. Key features include:

Material Composition

The material used in manufacturing the endmill is crucial to its performance:

• Carbide Endmills: Made from tungsten carbide, these endmills are extremely hard and heat-resistant, making them the most common choice for cutting hard metals. Their rigidity allows for precise cuts even under high stress.
• Cermet Endmills: A blend of ceramic and metallic materials, cermet endmills provide a balance of toughness and wear resistance, suitable for specific high-precision applications.
• Polycrystalline Diamond (PCD): These endmills are designed for super-hard materials. While exceptionally durable, they are expensive and more brittle compared to carbide tools.

Coatings

Coatings play a vital role in enhancing the performance and lifespan of endmills. Advanced coatings reduce friction, dissipate heat, and prevent wear:

• Titanium Aluminum Nitride (TiAlN): This coating forms a protective layer during cutting, resisting oxidation and reducing heat buildup.
• Aluminum Titanium Nitride (AlTiN): A step up from TiAlN, this coating is ideal for high-speed applications where heat resistance is critical.
• Diamond-Like Carbon (DLC): DLC coatings provide exceptional hardness and low friction, making them suitable for cutting ultra-hard materials with minimal wear.

Geometry and Design

The geometry of an endmill significantly influences its cutting efficiency and durability:

• Sharp Cutting Edges: Essential for reducing cutting forces and heat generation, especially when dealing with tough metals.
• Variable Helix Angles: These are designed to minimize chatter and vibrations during machining, improving surface finish and tool stability.
• Corner Radius: Endmills with rounded corners reduce stress concentration, prolonging tool life when machining hard metals.

Flute Count

The number of flutes impacts chip evacuation and surface finish. For hard metals, endmills with 4-6 flutes are often preferred. These offer a balance between efficient material removal and smooth finishing, while also minimizing the risk of tool breakage.

Types of Endmills Suited for Hard Metals

The diversity in machining requirements has led to the development of various types of endmills, each tailored to specific tasks. For hard metals, the following types are commonly used:

• Ball Nose Endmills: These are ideal for contouring and 3D machining, especially for creating molds and dies. Their rounded tips allow for smooth cutting of complex geometries.
• Square Endmills: Known for their versatility, square endmills are used for both roughing and finishing operations, delivering precise cuts and sharp edges.
• Corner Radius Endmills: Combining the benefits of square and ball nose endmills, these tools reduce stress on the cutting edge, making them perfect for hard materials.
• Tapered Endmills: These are designed for deep cavities and intricate profiles, often encountered in aerospace and mold-making industries.

Challenges and Strategies in Machining Hard Metals

While specialized endmills have revolutionized the machining of hard metals, the process still comes with its own set of challenges. Tool wear, excessive heat generation, and vibrations are common issues. To address these, manufacturers and machinists adopt various strategies:

• Coolant Usage: Effective cooling is critical. High-pressure coolant systems or cryogenic cooling can significantly reduce heat buildup, improving tool life and performance.
• Optimized Feed and Speed: Lower feed rates reduce cutting forces, while high spindle speeds ensure a finer finish.
• Advanced Toolpaths: Techniques like trochoidal milling, which uses a smaller radial depth of cut with continuous tool engagement, improve chip evacuation and reduce heat accumulation.

Advancements in Endmill Technology

Innovation in tool design and materials has opened new possibilities in machining hard metals. Modern endmills are equipped with:

• Nano-Coatings: These coatings offer enhanced wear resistance and heat dissipation, making them ideal for high-speed applications.
• Hybrid Materials: Combining different materials, such as carbide with PCD tips, creates tools that balance toughness and precision.
• Smart Endmills: The integration of sensors in endmills to monitor tool wear and machining conditions is gaining traction, ensuring consistent performance and reducing downtime.

Applications across Industries

The demand for endmills capable of machining hard metals is driven by industries that prioritize durability and precision. In aerospace, these tools are used for cutting titanium and nickel alloys for airframes and turbine components. In automotive manufacturing, they machine hardened steel for engine parts and drivetrains. Similarly, the mold and die industry relies on these endmills for creating high-precision molds and dies.

Conclusion

Endmills designed for hard metals have transformed the machining process, enabling industries to achieve levels of precision and efficiency that were once considered unattainable. The combination of advanced materials, coatings, and geometries has made these tools indispensable for modern manufacturing. By leveraging the right endmill and machining strategies, industries can overcome the challenges posed by hard metals, ensuring superior performance, longer tool life, and high-quality results. As technology continues to evolve, the capabilities of endmills are poised to expand further, setting new benchmarks in machining excellence.
