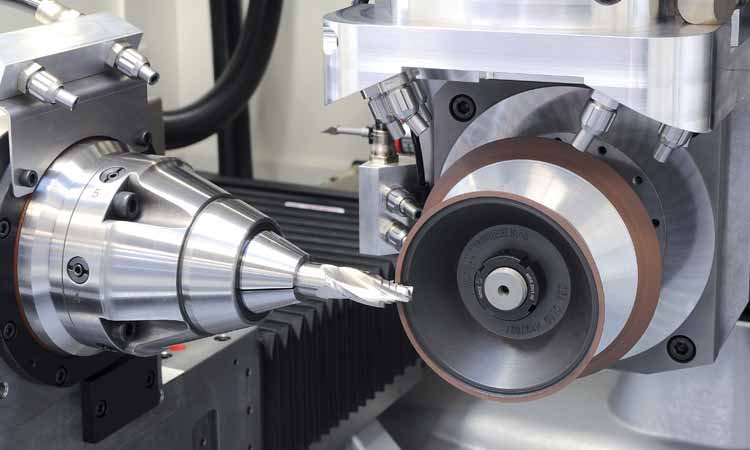

The Art And Science Of Tool Grinding

Tool grinding is a critical process in manufacturing and metalworking industries that involves shaping and sharpening tools to achieve precision and efficiency in various applications. This intricate blend of art and science requires a deep understanding of materials, cutting mechanics, and grinding techniques. This article explores the nuances of tool grinding, shedding light on the artistry and scientific principles that craftsmen employ to create cutting-edge tools.

The Art of Tool Grinding

Craftsmanship and Precision: At its core, tool grinding is an art form that demands the skillful hands of craftsmen. The ability to shape and sharpen tools with precision requires an innate understanding of the tool’s intended purpose and the materials it will encounter. Craftsmen often rely on years of experience to develop an intuitive feel for the process.

Aesthetics and Form: While functionality is paramount, the aesthetics of a well-ground tool should not be underestimated. Craftsmen take pride in creating tools that not only perform flawlessly but also possess a visually pleasing form. The art of tool grinding extends beyond functionality to encompass the beauty of a finely crafted instrument.

Customization and Innovation: Skilled tool grinders often engage in customization to meet specific requirements. Whether it’s modifying the geometry for a particular cutting task or experimenting with innovative designs, the artistry in tool grinding lies in the ability to adapt and create unique solutions.

The Science Behind Tool Grinding

Material Science: Understanding the properties of materials is fundamental to effective tool grinding. Different metals and alloys require specific grinding techniques to achieve optimal hardness, sharpness, and durability. Scientific knowledge about heat treatment, hardness levels, and metallurgical structures plays a crucial role.

Cutting Mechanics: Tool grinding is deeply connected to the science of cutting mechanics. Engineers and craftsmen must consider factors such as rake angles, relief angles, and clearance angles to optimize cutting performance. The science of how tools interact with workpieces during cutting operations guides the grinding process.

Grinding Techniques and Machinery: Modern tool grinding involves advanced machinery and precise techniques. The science behind selecting the right grinding wheel, controlling grinding forces, and utilizing coolant systems is crucial for achieving consistent and high-quality results. Understanding the mechanics of grinding machines enhances efficiency and tool longevity.

The Symbiosis of Art and Science
The successful grinding of tools relies on the delicate balance between art and science. Craftsmanship provides the intuition and creativity needed to address unique challenges, while scientific principles offer a structured approach to achieve precision and reliability. The symbiosis of these elements distinguishes exceptional tool grinders who, through their mastery, contribute significantly to the world of manufacturing and craftsmanship.

Grinding Techniques

Various grinding techniques are employed in tool grinding to achieve specific results based on the type of tool, material, and desired outcome. Here are some common grinding techniques:

Peripheral Grinding:

• Description: In peripheral grinding, the workpiece is ground on its outer surface. This technique is often used for cylindrical objects like shafts and pins.
• Application: Commonly used in the production of cylindrical tools and components.

Surface Grinding:

• Description: Surface grinding involves grinding the surface of a flat workpiece using a rotating abrasive wheel. This technique provides high precision and a smooth finish.
• Application: Widely used for producing flat surfaces on tools, dies, and other precision components.

Centerless Grinding:

• Description: Centerless grinding is a machining process where the workpiece is supported between two wheels, and the grinding wheel removes material from the workpiece without using centers for support.
• Application: Ideal for grinding cylindrical components with high precision and productivity, often used in mass production.

Tool and Cutter Grinding:

• Description: Tool and cutter grinding is a specialized technique used to sharpen or recondition cutting tools. It involves precise control of the tool’s geometry.
• Application: Common in the production and maintenance of cutting tools such as end mills, drills, and reamers.

Internal Grinding:

• Description: Internal grinding focuses on the internal diameter of a workpiece. The grinding wheel is introduced into the interior of the workpiece to remove material.
• Application: Used for creating accurate internal features, such as bores and holes.

Thread Grinding:

• Description: Thread grinding is employed for creating accurate threads on screws, bolts, and other threaded components. It involves the use of a grinding wheel to form the thread.
• Application: Common in the production of precision screws and threaded parts.

Creep Feed Grinding:

• Description: Creep feed grinding is a slow-speed, deep-cut grinding technique that removes material in a single pass. It is designed for heavy stock removal.
• Application: Ideal for grinding deep slots, complex profiles, and intricate shapes.

Form Grinding:

• Description: Form grinding is used to create precise shapes or contours on a workpiece. The grinding wheel follows a template or master form to reproduce the desired shape.
• Application: Common in the production of gears, camshafts, and other components with intricate geometries.

Belt Grinding:

• Description: Belt grinding uses a flexible abrasive belt to remove material. It is versatile and suitable for various applications.
• Application: Used for deburring, finishing, and shaping both metallic and non-metallic workpieces.

Cylindrical Grinding:

• Description: Cylindrical grinding is a general-purpose technique for grinding cylindrical surfaces. It can be performed on both the outer and inner diameters of cylindrical workpieces.
• Application: Widely used for producing cylindrical components with high precision.

Each grinding technique has its advantages and is selected based on the specific requirements of the task at hand. The choice of grinding technique depends on factors such as the type of material, desired finish, and the geometry of the workpiece.

Tool Grinding Machines

Tool grinding machines are specialized equipment designed for sharpening or reconditioning cutting tools used in various manufacturing processes. These machines play a crucial role in maintaining the precision and efficiency of tools. Here are some common types of tool grinding machines:

Surface Grinders:

• Description: Surface grinders are versatile machines used for grinding flat surfaces. They typically have a grinding wheel that rotates horizontally over the workpiece, providing a smooth and flat finish.
• Application: Ideal for tool and die making, surface grinders are used for precision grinding of flat surfaces on tools and components.

Cylindrical Grinders:

• Description: Cylindrical grinders are designed for grinding the outer and sometimes inner diameters of cylindrical workpieces. They come in various configurations, including center-type and centerless grinders.
• Application: Used for producing cylindrical tools, shafts, and other cylindrical components.

Tool and Cutter Grinders:

• Description: Tool and cutter grinders are specifically designed for sharpening and reconditioning cutting tools. They provide precise control over the geometry of various cutting tools such as end mills, drills, and reamers.
• Application: Essential in tool and die shops for maintaining and reshaping a variety of cutting tools.

Universal Grinders:

• Description: Universal grinders combine the features of cylindrical and tool and cutter grinders. They offer versatility in grinding both cylindrical and complex-shaped tools.
• Application: Suitable for a wide range of grinding tasks, including cylindrical, surface, and tool grinding.

Internal Grinders:

• Description: Internal grinders are designed for grinding the internal diameter of workpieces. They often have a spindle for holding the workpiece and a grinding wheel that moves radially inward to remove material.
• Application: Used for precision internal grinding of bores and holes in components.

Thread Grinders:

• Description: Thread grinders are specialized machines for grinding threads on screws, bolts, and other threaded components. They use precision grinding wheels to achieve accurate thread profiles.
• Application: Commonly used in industries where precise threading is critical, such as aerospace and automotive manufacturing.

Tool Post Grinders:

• Description: Tool post grinders are attachments mounted on lathes or other machine tools. They allow for tool grinding directly on the lathe, simplifying the process of maintaining cutting tools during machining operations.
• Application: Useful for in-process tool maintenance and quick reconditioning of cutting tools on the shop floor.

Belt Grinders:

• Description: Belt grinders use abrasive belts for material removal. They are versatile and can be configured for various tasks, including deburring, shaping, and sharpening.
• Application: Widely used for tool sharpening, deburring, and surface finishing.

Creep Feed Grinders:

• Description: Creep feed grinders are designed for heavy stock removal at low grinding speeds. They are capable of removing large amounts of material in a single pass.
• Application: Suitable for grinding deep slots, complex profiles, and large workpieces.

Diamond Tool Grinders:

• Description: Diamond tool grinders use diamond grinding wheels for precision grinding. These machines are suitable for applications requiring high hardness and wear resistance.
• Application: Commonly used for grinding hard materials such as carbide tools and cutting inserts.

When selecting a tool grinding machine, factors such as the type of tools to be ground, material specifications, required tolerances, and production volume should be considered. Tool grinding machines contribute significantly to the efficiency and precision of manufacturing processes across various industries.
