The Art of Threading in Metalworking
Threading is one of the most fundamental and intricate machining processes in metalworking, essential for creating secure and precise mechanical connections. From aerospace to automotive and industrial machinery, threaded components play a crucial role in fastening systems, fluid transfer, and motion control. This article explores the different threading methods, the latest innovations, and best practices for achieving high-quality threads.
Understanding Threading in Metalworking
Threading is the process of creating helical grooves on a cylindrical or conical surface to produce screw threads. These threads allow for fasteners, pipe connections, and lead screws in machine tools. The accuracy and quality of threads significantly influence the performance and reliability of mechanical assemblies.
Threads can be classified into:
- External Threads – Found on bolts, screws, and studs.
- Internal Threads – Found in nuts and tapped holes.
Methods of Threading
Several methods are employed to produce threads, each with its unique advantages and suitability for different applications.
Thread Cutting
This traditional method involves material removal using cutting tools such as:

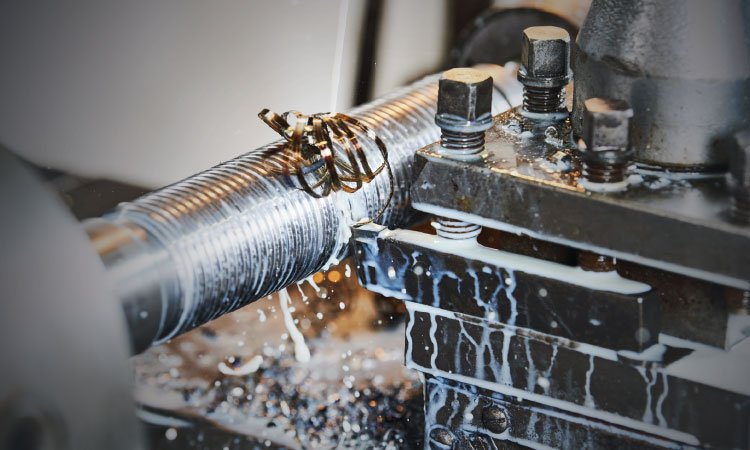

- Single-Point Threading – Performed on a lathe using a threading tool that follows a programmed path.
- Thread Milling – Involves the use of a rotating multi-tooth cutter to create precise threads.
- Thread Tapping – Uses a tap to cut internal threads into pre-drilled holes.
Thread Rolling
This cold-forming process deforms the metal to generate threads without material removal. It results in stronger, more fatigue-resistant threads due to the work-hardening effect.
Thread Grinding
Used for high-precision applications, thread grinding employs abrasive wheels to produce accurate and smooth threads, often used in aerospace and medical industries.
Thread Casting and Molding
Used for mass production, threads are created directly during the casting or molding process in materials like plastics and metals.
Innovations in Threading Technology
Modern advancements in threading processes have significantly enhanced efficiency, precision, and durability.
- CNC Threading: Computer Numerical Control (CNC) technology allows for highly precise and repeatable threading operations with complex geometries.
- High-Performance Coatings: Coatings like TiN, TiAlN, and DLC improve tool life and reduce friction during cutting.
- Hybrid Threading Techniques: Combining thread milling and thread rolling for improved accuracy and strength.
- Additive Manufacturing: 3D printing techniques are now being used to create complex threaded parts directly.
Best Practices for High-Quality Threads
To ensure superior threading quality and longevity, certain best practices should be followed:
- Proper Tool Selection: Choosing the right tool material (HSS, carbide, etc.) and geometry is crucial for achieving desired thread accuracy.
- Correct Cutting Parameters: Speed, feed rate, and depth of cut must be optimized for the material being threaded.
- Lubrication and Cooling: Proper use of cutting fluids reduces heat buildup, enhances surface finish, and extends tool life.
- Thread Inspection: Using tools like thread gauges, micrometers, and optical measurement systems ensures compliance with required tolerances.
- Machine Rigidity: Minimizing vibration and maintaining machine stability prevents errors & poor thread quality.
Conclusion
Threading in metalworking is a sophisticated process that demands precision, technique, and knowledge of various methods and materials. With advancements in CNC machining, coatings, and hybrid techniques, modern threading processes have achieved remarkable improvements in efficiency and quality. By adhering to best practices and leveraging technological innovations, manufacturers can produce durable, accurate, and high-performance threads essential for critical industrial applications.
