T-A Pro Drill – Wohlhaupter India
The Best Just Got Better
Wohlhaupter India Pvt. Ltd. provides expert engineering, technical support and onsite application services within India for Wohlhaupter GmbH and Allied Machine and Engineering Corp., leading manufacturers of holemaking and finishing tooling systems for the manufacturing industry. The company highlights their revolutionary high-penetration T-A Pro drill as an ideal cutting tool solution. After years of troubleshooting applications with their iconic T-A drill, Allied Machine’s engineers developed technology that takes the go-to solution for general purpose holemaking to a performance level previously unachievable by a spade insert. The T-A Pro drill combines material-specific insert geometries, a redesigned drill body and a proprietary coolant-through system to allow penetration rates that run at speeds nearly 30% faster than other high-performance drills on the market.

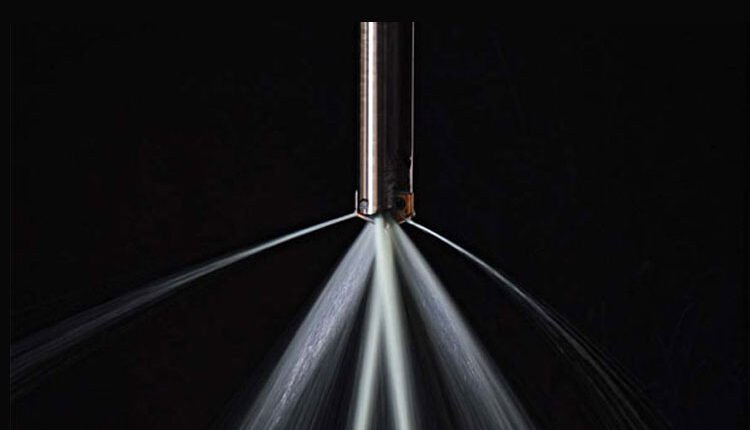

The new coolant design directs maximum flow to the cutting edge, which provides quick heat extraction when most critical; additionally, the coolant outlets allow the tool to consistently perform at significantly faster speeds and be the trustworthy choice for short production or general purpose applications where tooling costs need to be kept low. The drill body incorporates straight flutes redesigned for maximum chip evacuation and excellent rigidity as well.
Additionally, the material-specific insert geometries available for the T-A Pro drilling system produce impeccable chip formation from standard items. These insert geometries include:
- Steel (P) with AM300 coating
- Cast iron (K) with TiAIN coating
- Non-ferrous (N) with TiCN coating
- High-speed steel (X) with AM200 coating
The T-A Pro insert combines a coating and geometry specifically designed to achieve optimal results in many drilling applications.
Ultimately, all these design elements combine to extend tool life, create quality holes consistently and provide superior chip evacuation. With incredible speed and a cost per hole that averages 25% less than existing drills, the T-A Pro demonstrates to medium-sized shops and high-production manufacturers that what was once known as a general purpose tool is now the go-to for holemaking applications.
For more information, Website: www.alliedmachine.com
